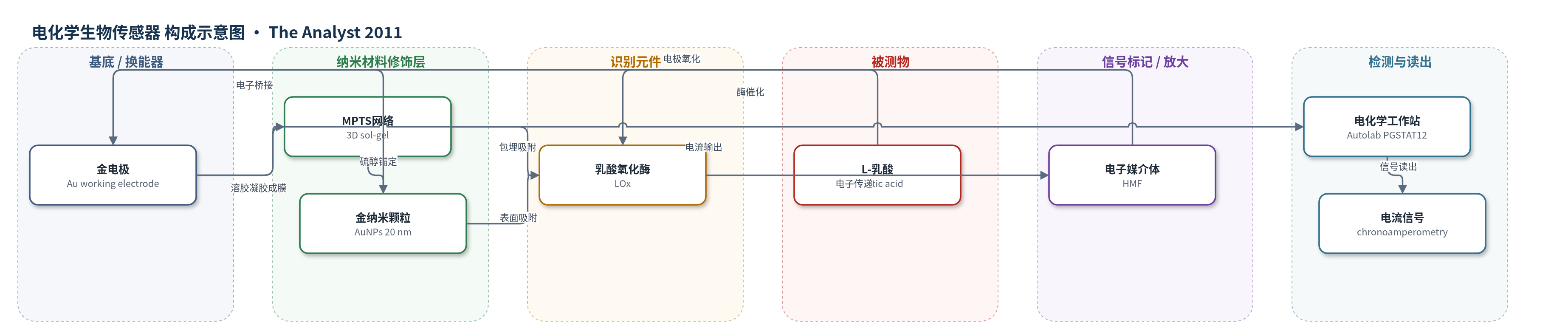

组成图示
点击图片查看大图 · 依据论文自动绘制
传感器类型
电化学生物传感器
检测对象
L-乳酸（L-lactic acid / lactate）；样品基质：磷酸盐缓冲液（PBS，pH 7.0），文中提及可应用于血液和食品样品
检测原理
传感器以LOx为识别元件，催化L-乳酸氧化为丙酮酸。传统反应以O2为电子受体生成H2O2，本工作用可溶性媒介体HMF替代O2作为人工电子受体。LOx催化过程中产生的电子经HMF传递至金电极，HMF在+0.30 V被氧化，产生与乳酸浓度成正比的计时电流。MPTS三维溶胶-凝胶网络包埋LOx，保持其催化活性并提高酶负载量；AuNPs分散在网络中作为微小电子传导中心，缩短电子转移距离并增强电流。因此乳酸浓度越高，催化电流越大，通过电化学工作站读取电流即可定量。
检测灵敏度
LOD: 4.0 mM；线性范围: 50 mM–0.25 mM；灵敏度: 3.4 mA mM^-1；r = 0.994
效应效果
与无AuNPs的Au/MPTS/LOx相比，AuNPs显著提高电流响应。重复性RSD为2%（同一传感器测0.1 mM乳酸10次），重现性RSD为5%（三个不同传感器）。4°C保存10天后信号衰减10%。干扰实验显示，0.1 mM酒石酸、柠檬酸、葡萄糖、果糖不改变响应；0.1 mM抗坏血酸有干扰，但10 mM无影响。QCM表明MPTS/AuNPs网络可负载619 ng cm^-2 LOx，约为裸金或DTSP金表面的3.5倍。作者认为该杂化网络适合乳酸检测，可应用于医学和食品工业。
传感器的构成
- 基底/换能器电极：多晶金电极（Au），经抛光和电化学活化，提供导电基底和硫醇锚定位点
- 溶胶-凝胶网络层：(3-巯基丙基)三甲氧基硅烷（MPTS）水解缩合形成的三维硅酸盐聚合物网络，提供生物相容包埋环境并含硫醇尾基
- 纳米材料修饰层：胶体金纳米颗粒（AuNPs，约20 nm），通过硫醇基化学吸附于MPTS网络，作为电子传导中心促进电子转移
- 识别元件：乳酸氧化酶（LOx），包埋/吸附于MPTS/AuNPs网络，催化L-乳酸氧化为丙酮酸，并将电子传递给HMF
- 电子媒介体：羟甲基环戊二烯铁茂（HMF），可溶性人工电子受体，在+0.30 V被电极氧化，传递LOx催化电子
- 检测介质：0.1 M磷酸盐缓冲液（PBS，pH 7.0），维持酶活性和电化学测量环境
中文摘要
本文设计并表征了一种新型纳米结构有机–无机杂化材料，并将其用于L-乳酸的电化学测定。该材料将乳酸氧化酶（LOx）和金纳米颗粒（AuNPs）整合到由(3-巯基丙基)三甲氧基硅烷（MPTS）在金表面形成的溶胶–凝胶三维聚合物网络中。MPTS可形成含大量硫醇尾基的三维网络，既能通过硫醇基锚定于金表面，又能结合AuNPs；同时提供生物相容环境，保持LOx催化活性并允许高负载量，从而提高传感器灵敏度。作者采用石英晶体微天平（QCM）、扫描电子显微镜（SEM）和原子力显微镜（AFM）表征该平台，获得LOx吸附动力学、酶负载量和纳米形貌信息。最终传感器对L-乳酸在50 mM–0.25 mM范围内呈线性响应，灵敏度为3.4 mA mM^-1，检出限为4.0 mM。
