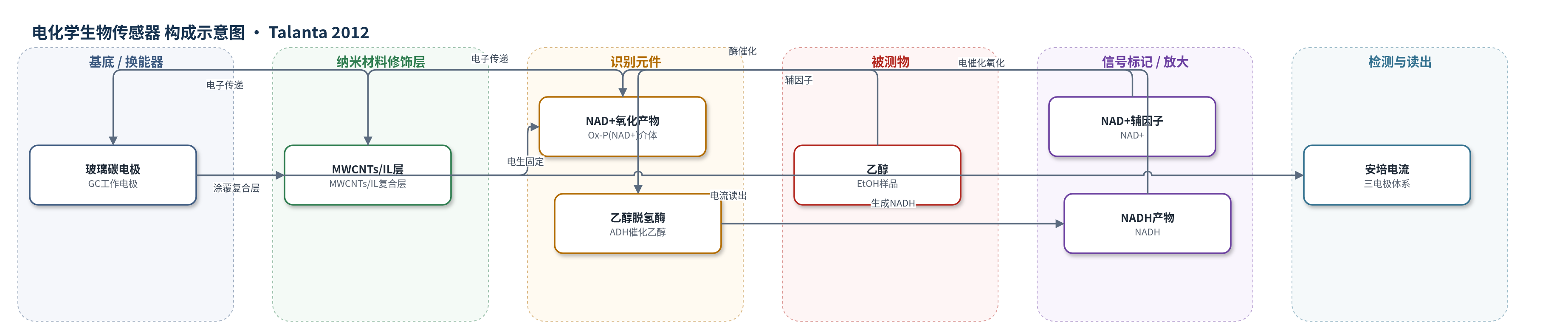

组成图示
点击图片查看大图 · 依据论文自动绘制
传感器类型
电化学生物传感器
检测对象
乙醇（ethanol, EtOH，实际饮料样品，稀释10倍 PBS pH 8.8）、NADH（NADH，PBS 缓冲液）
检测原理
该传感器基于酶促反应与电催化介体再生。乙醇脱氢酶（ADH）催化乙醇氧化，同时NAD+被还原为NADH；生成的NADH扩散至MWCNTs/IL/Ox-P(NAD+)修饰电极表面，被电生NAD+氧化产物（Ox-P(NAD+)，含醌二亚胺等氧化还原活性物种）电催化氧化，并再生NAD+。MWCNTs提供导电通道，离子液体分散MWCNTs并稳定界面，促进电子转移。在+0.05 V低电位下，NADH氧化产生安培电流；由于表面NAD+和Ox-P(NAD+)浓度基本恒定，电流随乙醇浓度增加而增加。低电位和介体再生循环减少电极污染并提高选择性。
检测灵敏度
NADH: LOD: 2 × 10−8 mol L−1；线性范围: 2 × 10−7–2 × 10−5 mol L−1，R^2 = 0.9926，灵敏度: 0.44 (±0.02) A mol−1 L cm−2；2 × 10−5–4.2 × 10−5 mol L−1，R^2 = 0.9905，灵敏度: 0.2 (±0.01) A mol−1 L cm−2；CV催化电流线性范围: 5 × 10−5–3 × 10−4 mol L−1，R^2 = 0.9981，方程: Ip(µA) = 2.4214[NADH](×10−3 mol L−1) + 0.0202 µA。乙醇: LOD: 5 × 10−7 mol L−1；线性范围: 5 × 10−6–6 × 10−5 mol L−1，方程: I (nA) = 1.7 [EtOH](×10−6 mol L−1) + 8.3 nA，R^2 = 0.9981，灵敏度: 13.1 mA mol−1 L cm−2；6 × 10−5–9 × 10−4 mol L−1，方程: I (nA) = 1.0 [EtOH](×10−6 mol L−1) + 77.2 nA，R^2 = 0.9948，灵敏度: 7.7 mA mol−1 L cm−2。
效应效果
该传感器抗干扰能力强：1×10−4 mol L−1的抗坏血酸、尿酸、葡萄糖和对乙酰氨基酚几乎不干扰；尿酸、葡萄糖和对乙酰氨基酚达乙醇100倍时响应仍可忽略，仅抗坏血酸高于1×10−4 mol L−1时产生可比响应。稳定性好：Ox-P(NAD+)经250次循环峰电流仅降10%，室温空气保存4周保留95%活性；NADH安培响应1800 s仅降15%，100次连续测量无变化，保存15天降10%。实际饮料样品加标回收率为97.20%–98.10%，偏差2.40%–2.90%。与文献乙醇生物传感器相比，其10 s响应、0.10 V低电位和较宽动态范围具有优势，适合脱氢酶型安培生物传感器。
传感器的构成
- 基底/换能器电极：玻璃碳电极（GC electrode），抛光后作为工作电极，提供电子转移界面
- 纳米材料修饰层：多壁碳纳米管（MWCNTs）与N-丁基-N-甲基吡咯烷鎓双(三氟甲磺酰)亚胺离子液体（[C4mpyr][NTf2], IL）混合涂覆，形成导电、稳定、低背景电流的纳米复合膜
- 电催化介体层：电生NAD+氧化产物（Ox-P(NAD+)），由NAD+在MWCNTs/IL表面电位循环氧化生成并吸附，作为氧化还原介体催化NADH氧化
- 酶促反应组分：乙醇脱氢酶（ADH, EC 1.1.1.1）与辅因子NAD+，在溶液中催化乙醇氧化并生成NADH
- 信号转换元件：NADH作为酶促产物，被Ox-P(NAD+)电催化氧化再生NAD+，产生与乙醇浓度相关的安培电流
- 信号读出：三电极体系（工作电极MWCNTs/IL/Ox-P(NAD+)/GC、对电极Pt丝、参比Ag/AgCl/KCl 3 M），通过循环伏安和安培法读取电流
中文摘要
本文报道了一种基于多壁碳纳米管/N-丁基-N-甲基吡咯烷鎓双(三氟甲磺酰)亚胺离子液体（MWCNTs/[C4mpyr][NTf2]）修饰玻璃碳电极的电化学生物传感器。通过电位循环将NAD+氧化产物（Ox-P(NAD+)）固定在MWCNTs/IL纳米复合层表面，形成稳定的氧化还原活性介体。该修饰电极可在0.05 V（vs. Ag/AgCl）低电位下高效电催化NADH氧化，较裸玻璃碳电极降低约600 mV过电位，并显著减少电极污染。安培法检测NADH的检出限为2×10−8 mol L−1，线性范围可达4.2×10−5 mol L−1。以乙醇脱氢酶（ADH）为模型酶，该体系用于乙醇检测，在5×10−6–6×10−5和6×10−5–9×10−4 mol L−1范围内呈线性响应，检出限为5×10−7 mol L−1，响应时间约10 s。抗坏血酸、尿酸、葡萄糖和对乙酰氨基酚等干扰可忽略，并成功用于实际饮料样品中乙醇的检测。
