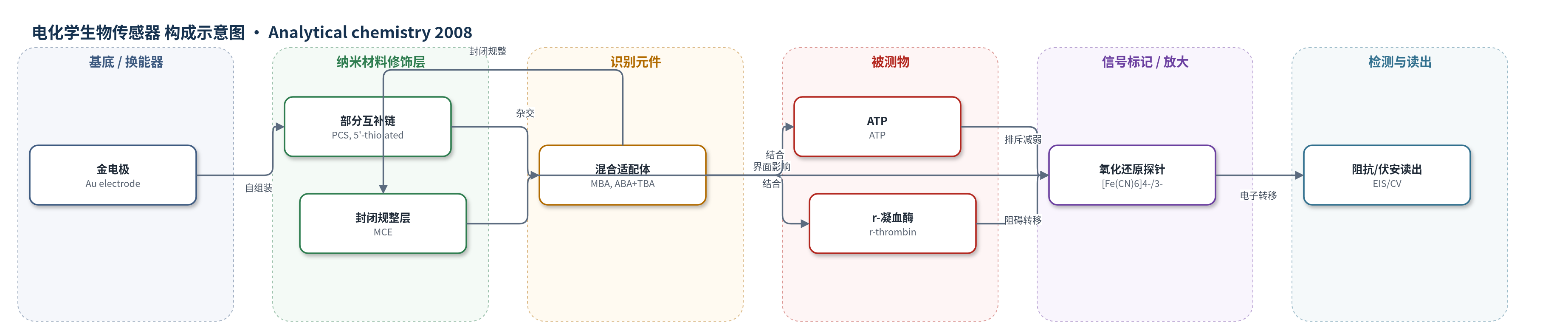

组成图示
点击图片查看大图 · 依据论文自动绘制
传感器类型
电化学生物传感器
检测对象
ATP（腺苷三磷酸，ATP）、r-凝血酶（r-thrombin）；样品基质：缓冲液、1%预处理人血浆（pretreated human plasma）
检测原理
该传感器采用无标记阻抗换能。Au/PCS-MBA/MCE界面带负电，排斥[Fe(CN)6]4-/3-，使电子转移电阻Ret较高。ATP与MBA中的ABA结合后，MBA从PCS上脱离，界面负电荷密度降低，对探针排斥减弱，Ret下降，呈signal-off响应；TBA串联在ABA上延长识别链，增强空间位阻与信号变化，提高灵敏度。r-凝血酶与TBA结合后，大体积蛋白复合物保留在电极表面，形成疏水阻断面层，阻碍电子转移，Ret上升，呈signal-on响应。EIS在5 mV、10 kHz–0.1 Hz下读取Ret，CV辅助验证。ATP检测后可用PCS再杂交再生；r-凝血酶检测后可用高浓度ATP置换MBA再杂交再生。
检测灵敏度
ATP: LOD: 0.01 µM (1 × 10-8 M)；线性范围: 0.01–100 µM；R^2 = 0.9946；检测范围可延伸至 10-4 M。r-thrombin: LOD: 0.01 nM (1 × 10-11 M)；线性范围: 0.01–76 nM；R^2 = 0.9983；检测范围: 1 × 10-11–1 × 10-7 M。
效应效果
选择性方面，0.1 mM GTP/CTP、100 nM BSA、20 nM α-凝血酶和20 nM γ-凝血酶均无明显EIS响应，错配适配体MAS也无响应。重现性方面，ATP平均RSD为0.01609，r-凝血酶平均RSD为0.03096。稳定性方面，传感器在纯水中4 °C保存15天后EIS信号与使用前一致。可再生性方面，界面可重复使用3次以上，超过3次后MBA难以被ATP完全置换，仅能识别而难以定量。实际样品中，在1%预处理人血浆里，r-凝血酶20–80 nM、ATP 20–120 µM有显著响应，但灵敏度低于缓冲液。作者认为其无标记、可再生、多功能，适合小分子与蛋白检测。
传感器的构成
- 基底/换能器电极：金电极（Au electrode，直径1.2 mm）作为工作电极，配合Ag/AgCl参比电极和Pt对电极，用于EIS/CV信号读出
- 自组装固定层：5'-巯基部分互补链（PCS，5′HS-(CH2)6-TACAGACCTTCC 3′）通过Au-S键自组装固定于Au表面，提供MBA杂交位点
- 识别元件：混合适配体链（MBA，5′ GGTTGGTGTGGTTGGACCTGGGGGAGTATTGCGGAGGAAGGTCTGTA 3′），内含ATP结合适配体（ABA）和r-凝血酶结合适配体（TBA），与PCS杂交后伸出识别区
- 封闭/规整层：2-巯基乙醇（MCE，10 mM Tris-HAc，pH 7.41）处理界面，使DNA阵列更规整并降低非特异吸附
- 氧化还原探针：[Fe(CN)6]4-/3-（5 mM K4[Fe(CN)6]/K3[Fe(CN)6]，67 mM PBS，pH 7.0）作为无标记EIS/CV电子转移指示剂
- 被测物：ATP（腺苷三磷酸）和r-凝血酶（r-thrombin），分别与ABA和TBA特异性结合
- 再生试剂：PCS再杂交用于ATP检测后再生；高浓度ATP置换MBA后与PCS再杂交用于r-凝血酶检测后再生
中文摘要
本文报道了一种基于整合适配体的多功能、可再生、无标记电化学生物传感器，用于平行检测腺苷三磷酸（ATP）和r-凝血酶（r-thrombin）。该传感器以金电极为传感表面，固定5'-巯基部分互补链（PCS），并与含ATP结合适配体（ABA）和r-凝血酶结合适配体（TBA）的混合适配体链（MBA）杂交形成部分双链，再用2-巯基乙醇（MCE）规整封闭。检测采用电化学阻抗谱（EIS）和循环伏安法（CV），以[Fe(CN)6]4-/3-为氧化还原探针。ATP结合ABA后使MBA脱离电极表面，降低界面负电荷，电子转移电阻下降；r-凝血酶结合TBA后在界面形成大体积蛋白层，阻碍电子转移，电阻上升。ATP检出限为1×10^-8 M，范围可至10^-4 M；r-凝血酶检出限为1×10^-11 M，范围为1×10^-11–10^-7 M。传感器可通过再杂交或高浓度ATP置换再生，并在1%预处理人血浆中表现出检测能力，具有无标记、高灵敏、可再生和多功能识别优势。
