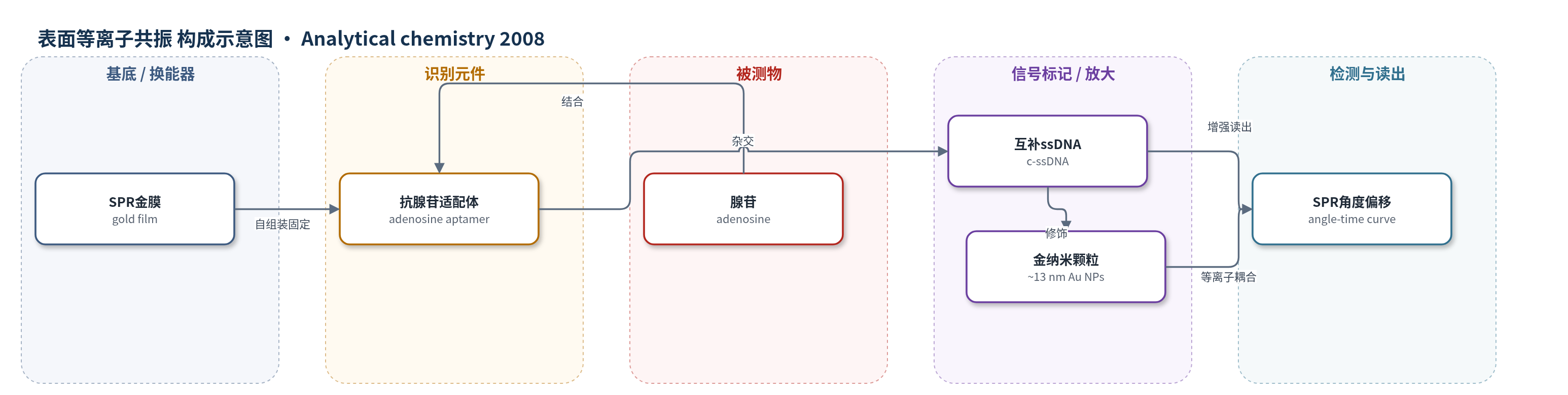

组成图示
点击图片查看大图 · 依据论文自动绘制
传感器类型
表面等离子共振(SPR)生物传感器
检测对象
腺苷（adenosine），样品基质为50 mM Tris-HCl缓冲液（pH 8.0，含138 mM NaCl）
检测原理
该传感器以抗腺苷适配体为识别元件，通过Au-S键固定在SPR金膜上，并用6-巯基己醇封闭裸露金面。适配体初始呈单链DNA（ss-DNA）结构，可与互补ss-DNA杂交。加入腺苷后，适配体与腺苷特异性结合，由自由卷曲ss-DNA折叠为稳定三级结构；形成三级结构的适配体不能与互补ss-DNA杂交。随后加入金纳米颗粒（Au NPs）标记的互补ss-DNA，只有未结合腺苷的适配体可发生杂交。Au NPs的局域表面等离子体与SPR金膜的表面等离子波发生电子耦合，显著放大SPR角度偏移。腺苷浓度越高，形成三级结构的适配体越多，杂交结合的金纳米颗粒标记互补ss-DNA越少，SPR角度偏移越小。通过记录SPR角度-时间曲线，可获得角度偏移与腺苷浓度对数之间的线性关系。
检测灵敏度
线性范围: 1 × 10-9–1 × 10-6 M
效应效果
该SPR传感器对腺苷灵敏度高、选择性好。无腺苷时，Au NPs标记互补ss-DNA杂交产生最大SPR角度偏移约0.831°；1 nM腺苷使偏移降至约0.748°，检测范围为1×10^-9至1×10^-6 M。1 mM尿苷、胞苷、鸟苷仅使偏移轻微下降，1 mM腺苷则显著下降，可区分相似核苷。直接腺苷结合偏移仅约0.004°，需Au NPs放大；1 mM腺苷下仍残留约0.1°杂交信号，归因于适配体构象位阻。作者认为其性能与光学/电化学适配体传感器相当，优于分子印迹SPR方法，可推广至多种小分子。
传感器的构成
- 基底/换能器：SPR金膜（SPR gold film），提供表面等离子共振换能界面
- 识别元件：抗腺苷适配体（anti-adenosine aptamer，5′-SH-C6-AGA GAA CCT GGG GGA GTA TTG CGG AGG AAG GT-3′），经Au-S键固定，结合腺苷后由ss-DNA折叠为三级结构
- 封闭剂：6-巯基己醇（6-mercaptohexan-1-ol），封闭裸露金表面，降低非特异吸附
- 信号标记/放大元件：柠檬酸稳定金纳米颗粒标记互补ss-DNA（Au NPs-tagged complementary ss-DNA，~13 nm Au NPs + 5′-SH-C6-ACC TTC CTC CGC-3′），与未折叠适配体杂交并放大SPR角度偏移
- 缓冲介质：50 mM Tris-HCl（pH 8.0，含138 mM NaCl），维持适配体构象与杂交反应
- 读出系统：Eco Chemie Autolab SPR仪（670 nm激光），记录SPR角度-时间曲线和角度偏移
中文摘要
小分子难以用常规表面等离子共振（SPR）技术直接检测，因为其结合过程引起的折射率变化通常很小。为扩展SPR生物传感器在小分子检测中的应用，作者将适配体技术与金纳米颗粒（Au NPs）的放大效应相结合，设计了一种高灵敏度的SPR传感器。该传感器基于表面抑制检测原理：适配体先以单链DNA（ss-DNA）形式固定在SPR金膜上，此时可与Au NPs标记的互补ss-DNA杂交，引起较大的SPR信号变化；加入腺苷后，适配体由ss-DNA结构折叠为三级结构，无法再与Au NPs标记互补ss-DNA杂交。因此，杂交反应引起的SPR信号变化随具有三级结构适配体数量的增加而降低，而该数量与腺苷浓度成正比。作者以抗腺苷适配体/腺苷体系验证传感性能，结果表明该SPR传感器对腺苷具有良好的灵敏度和高选择性，检测范围为1×10^-9至1×10^-6 M。该策略易于通过更换不同适配体推广到多种小分子的SPR检测，有望为高性能SPR生物传感器设计提供新方向。
